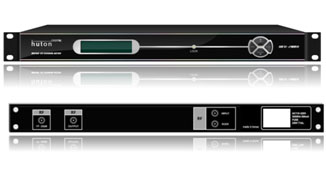

HEQ-1000 ATSC to QAM Modulator

페이지 정보

작성자 플래너스 댓글 0건 조회 462회 작성일 21-02-08 10:34

본문

HEQ-1000은 ATSC(8VSB) 표준 규격에 부합하는 국내 디지털 지상파 신호를 QAM으로 변조하여 송출하는 장비로서 16, 32, 64, 128, 256 QAM 및 ITU-T J.83 Annex A/B/C에서 요구하는 변조 모드를 모두 지원합니다. 또한 216 ~ 223 까지의 PRBS 패턴을 자체 발생시키는 기능도 지원합니다.

GENERAL FEATURES
 - Standard ATSC (A.53) demodulation
 - Digital terrestrial RF input frequency (54 ~ 864 MHz)
 - Available at low RF input level (minimum 35 dBuV)
 - Advanced QAM modulation
 - Supports 16 / 32 / 64 / 128 / 256 QAM modulation
 - ITU-T J.83 Annex A/B/C compliant
 - Standard Digital RF output (54 ~ 864 MHz) with level of 0 dBm
 - Automatic system error monitoring & Re-activation
 - Front panel control & Optional Ethernet control

Input Specification
 - Standard ATSC(8VSB) RF
 - RF Input Frequency : 54 ~ 864 MHz
 - RF Input Level : 35 ~ 85 dBuV

Data Processing
 - Advanced QAM modulation (ITU-T J.83)
 - Symbol rate : up to 7.6 Msps
 - FEC : Annex A/C (DVB-C), Opencable
 - Interleaving : 188, 204 Reed-solomon

Physical and Power
 - Dimension : 485mm(L) x 45mm(H) x 320mm(D)
 - Weight : 3 kg
 - Input Voltage : AC100 ~ 240V, 50/60Hz -
 - Power Consumption : 20 Watt

Output Specification
 - Dual QAM RF output
 - F-type connector with 75 ohm
 - Output Frequency : 54 ~ 864 MHz
 - RF Output Level : 0 dBm +/- 5 dB
 - RF TP -20 Level : – 20 dBm +/- 5dB
 - Bandwidth : 6/7/8 MHz
 - Spurious : less than – 60 dB
 - Return Loss : more than 10 dB @ 75 ohm
 - Phase Noise : Typical – 98 dBc/Hz @ 20 KHz
 - Group Delay Time : +/- 50 ns
 - RF Level Control Step : 1 dB
 - Attenuation Level : max. 19 dB
 - Signal to Noise : Typical 32 dB at RF
